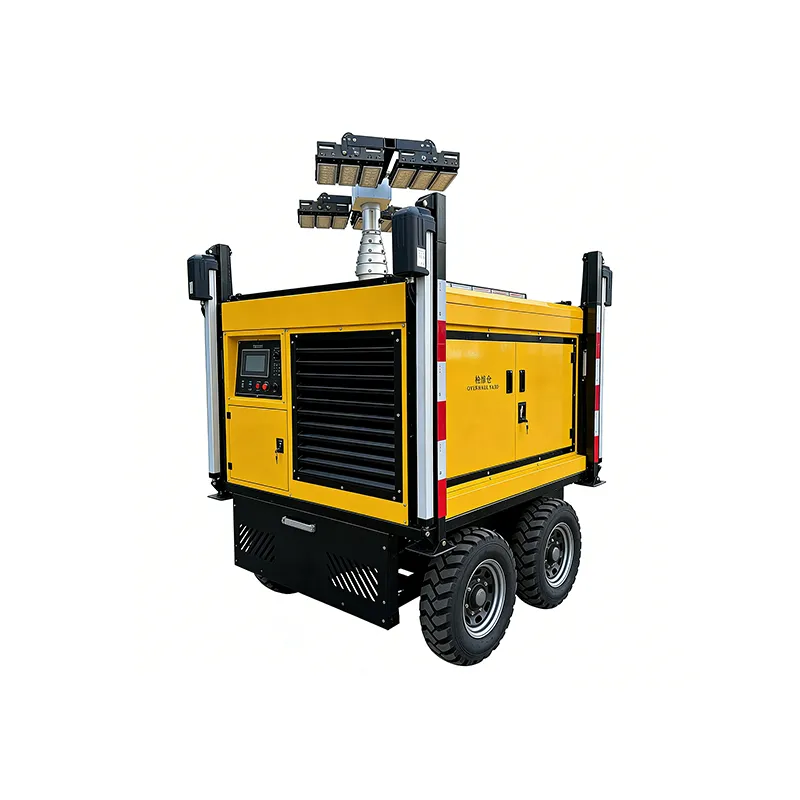

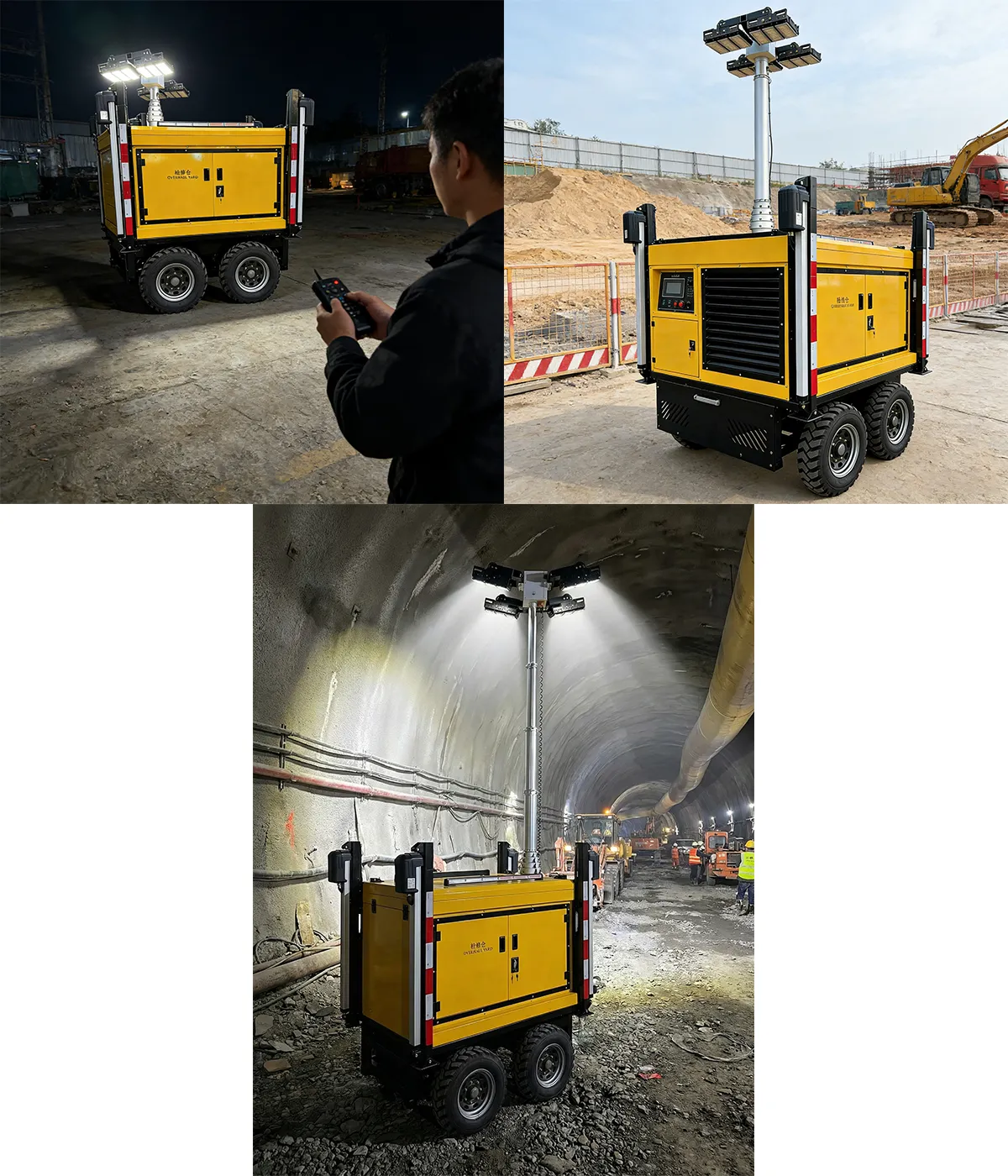

Automated driving, automatic lighting, and elevation lighting tower (intelligent model)

1. The autopilot can be remotely controlled via remote control or mobile app.
2. It can be equipped with lightweight or heavy-duty tripods to control the angle of the lighting fixtures.
3. Waterproof lighting fixtures, unafraid of storms.
4. The mast can be controlled manually, electrically, pneumatically, hydraulically, with a lifting height of 3-10 meters.
5. It comes with 4 wear-resistant wheels, with a long service life.
6. You can choose a generator or battery to provide power.
7. Multiple operation panels are available for selection. If you prefer, you can choose the LCD panel.
8. Innovative use of self-balancing system. If you have strict requirements for a completely level position, please add this item!
9. Other functions can be added such as emergency charging, Bluetooth voice broadcast playback function, storage compartment, monitoring.
10. Other parameters can be referred to the following table. If you have other needs, please contact me. We can customize it for you.
11. Our products are much cheaper than foreign brands such as Generac and Pramac. We have a complete after-sales system and warranty period. Moreover, our factory is very flexible and can customize other functions and appearance for you.
12. As long as you need it, please send me an email or call me. I am willing to stay online for you.

Automated driving, self loading, and elevation lighting tower (intelligent model)
No System Item Name Specification
1 Light system Light type ()Gas discharge lamp  ()400W   ()1000W
2 ()LED Lamp ()50W  ()100W  ()150W   ()200W   ()300W  ()400W  ()500W  ()1000W
3 Input voltage AC220V
4 IP grade IP65
5 Lamp quantity ()2  ()4  ()6   ()8
6 Auxiliary lighting lamp LED 18W
7 Quantity 2
8 Emergency warning lights LED 18W
9 Quantity 2
10 Jacking system Mast () Manual () Electric () Pneumatic () Hydraulic
11 The entire lamp’s lifting height ()3m  ()4.5m  ()5m  ()6m ()7m ()9m ()10m
12 Material () Carbon steel  () SS 304() Aluminum alloy
13 Color () Black  () White  () Original
14 Power system ()Generator ()Gasoline generator () Open-style    () Silent model
15 ()Diesel generator () Open-style    () Silent model
16 Start mode () Manual start  () Electric start
17 Cooling way () Air-cooled  () Water-cooled
18 Generator power ()700W  ()1000W  ()2000W  ()3000W ()5000W  ()8000W  ()10000W  ()20000W
19 Increase the fuel tank capacity ()Yes  ()No
20 Output voltage ()AC220V  ()AC380V
21 ()Storage battery Battery () Gel battery  () Lithium iron phosphate battery  () Lead-acid battery  () AGM battery
22 Electric quantity ()5kWH  ()10kWH  ()15kWH  ()20kWH
23 Input voltage  ()AC220V  ()DC24V  ()DC48V  ()DC72V
24 Output voltage ()DC12V  ()DC24V  ()DC36V   ()DC48V  ()DC72V   ()AC220V
25 Control system Control panel ()Killer switch  () Rotary button switch  () Touch screen
26 Remote control ()Yes  ()No
27 Self check system ()Yes  ()No
28 Remote control way () Remote controler  () App control
29 Lamp rotating pan/tilt unit () Lightweight Pan-tilt Unit () Heavy-duty Pan-tilt Unit
30 Rotation angle () Left and right 360°  () up and down 90°  () up and down 330°
31 Rack system Material () Carbon steel  ()SS 304
32 Self-loading type Supporting leg () Electric  () Hydraulic
33 self-balancing system ()Yes  ()No
34 Move ()2 axes and 4 wheels () Tracks
35 Other function Functions () Emergency charging (DC 24V)  () Emergency charging (AC 220V)  () Bluetooth voice broadcasting function  () Storage compartment  () Monitoring
36 Drive function ()Yes ()No
37 Outer size 3500x2100x2300 mm
38 Weight 750 kg
39 Package ()Loose package
()Normal wooden box
()Non-fumigation wooden box
