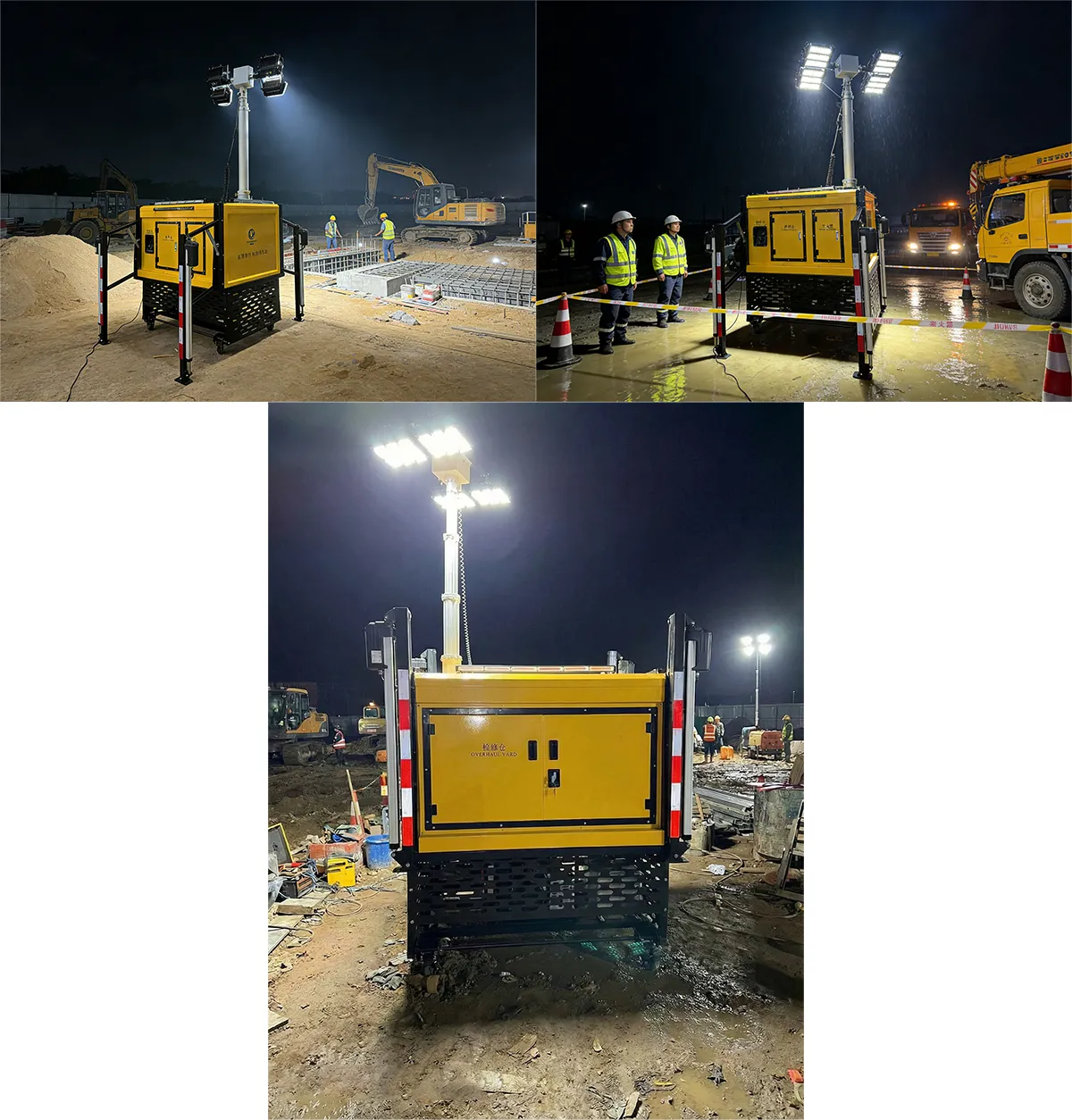

Self-loading mobile lifting lighting tower (standard model)
1. It can automatically raise its height and be placed on the vehicle.
2. Gasoline or diesel generators are available as options.
3. Various battery materials are also available as options.
4. Remote start is an option.
5. A pan-tilt can be selected to allow the lamp to shine from multiple angles.
6. A self-balancing system is available to withstand bumpy roads and remain level at all times.
7. Additional functions such as charging and monitoring can be added.
| Self-loading mobile lifting lighting tower (standard model) | ||||
| No | System | Item Name | Specification | |
| 1 | Light system | Lamp type | ()Gas discharge lamp | ()400W ()1000W |
| 2 | ()LED Lamp | ()50W ()100W ()150W ()200W ()300W ()400W ()500W ()1000W | ||
| 3 | Input voltage | AC220V | ||
| 4 | IP grade | IP65 | ||
| 5 | Lamp quantity | ()2 ()4 ()6 ()8 | ||
| 6 | Auxiliary lighting lamp | LED 18W | ||
| 7 | Quantity | 2 | ||
| 8 | Emergency warning lights | LED 18W | ||
| 9 | Quantity | 2 | ||
| 10 | Jacking system | Mast | () Manual () Electric () Pneumatic () Hydraulic | |
| 11 | The entire lamp’s lifting height | ()3m ()4.5m ()5m ()6m ()7m ()9m ()10m | ||
| 12 | Material | () Carbon steel () SS 304 () Aluminum alloy | ||
| 13 | Color | () Black () White ()Original | ||
| 14 | Power system | ()Generator | ()Gasoline generator | () Open-style () Silent model |
| 15 | ()Diesel generator | () Open-style () Silent model | ||
| 16 | Start mode | () Manual start () Electric start | ||
| 17 | Cooling way | ()Air cooling ()Water cooling | ||
| 18 | Generator power | ()700W ()1000W ()2000W ()3000W ()5000W ()8000W ()10000W ()20000W | ||
| 19 | Increase the fuel tank capacity | ()Yes ()No | ||
| 20 | Output voltage | ()AC220V ()AC380V | ||
| 21 | ()Storage battery | Battery | () Gel battery () Lithium iron phosphate battery () Lead-acid battery () AGM battery | |
| 22 | Electric quantity | ()5kWH ()10kWH ()15kWH ()20kWH | ||
| 23 | Input voltage | ()AC220V ()DC24V ()DC48V ()DC72V | ||
| 24 | Output voltage | ()DC12V ()DC24V ()DC36V ()DC48V ()DC72V ()AC220V | ||
| 25 | Control system | Control panel | ()Killer switch () Rotary button switch () Touch screen | |
| 26 | Remote control | ()Yes ()No | ||
| 27 | Self check system | ()Yes ()No | ||
| 28 | Remote control way | () Remote controler () App control | ||
| 29 | Lamp rotating pan/tilt unit | () Lightweight Pan-tilt Unit () Heavy-duty Pan-tilt Unit | ||
| 30 | Rotation angle | () Left and right 360° () up and down 90° () up and down 330° | ||
| 31 | Rack system | Material | () Carbon steel ()SS 304 | |
| 32 | Self-loading type | Supporting leg | () Electric () Hydraulic | |
| 33 | self-balancing system | ()Yes ()No | ||
| 34 | Move | 2 steering wheels + 2 swivel wheels | ||
| 35 | Other function | Functions | () Emergency charging (DC 24V) () Emergency charging (AC 220V) () Bluetooth voice broadcasting function () Storage compartment () Monitoring | |
| 36 | Drive function | ()Yes ()No | ||
| 37 | Outer size | 3600X1620X1650 MM | ||
| 38 | Weight | 550 KG | ||
| 39 | Package | （）Loose package （）Normal wooden box （）Non-fumigation wooden box |
||
